Zn-Al-Mg coated steel is a continuously hot-dip coated steel product protected by a zinc-based alloy containing aluminum and magnesium. It is widely used where conventional galvanized steel may not provide sufficient corrosion protection at cut edges, punched holes, bends, weld-adjacent areas, and other fabricated locations.
This material is commonly used in solar mounting systems, agricultural structures, C and U channels, purlins, cable trays, building components, equipment housings, and other outdoor steel products. Its popularity comes from a combination of high corrosion resistance, efficient coil-based processing, and enhanced protection around cut edges.
In the market, people often call this material “ZAM steel.” However, it is important to use the term correctly. ZAM™ is a registered product brand of Nippon Steel. The generic technical term is Zn-Al-Mg coated steel, ZM coated steel, or zinc-magnesium coated steel. Not every Zn-Al-Mg coated product is genuine ZAM™ material, and different suppliers may use different coating chemistries, coating masses, surface treatments, and performance specifications.
This guide explains what Zn-Al-Mg coated steel is, how it protects cut edges, how it compares with conventional galvanized and 55% Al-Zn coated steel, and what buyers should specify before ordering.
Explore our range of Zn-Al-Mg coated steel coils, Zn-Al-Mg coated steel sheets, and Zn-Al-Mg coated steel tubes.
Zn-Al-Mg coated steel is normally produced as continuously hot-dip coated steel sheet, strip, or coil. During production, cold-rolled steel strip passes through a molten zinc-based alloy bath containing controlled additions of aluminum and magnesium. The coated strip is then cooled, treated, and supplied in coil or sheet form.
After coating, the material can be slit, punched, roll formed, bent, pressed, profiled, or welded into finished products. Common examples include solar mounting channels, structural purlins, agricultural support members, cable trays, roofing-support components, brackets, equipment frames, and selected welded steel tubes.

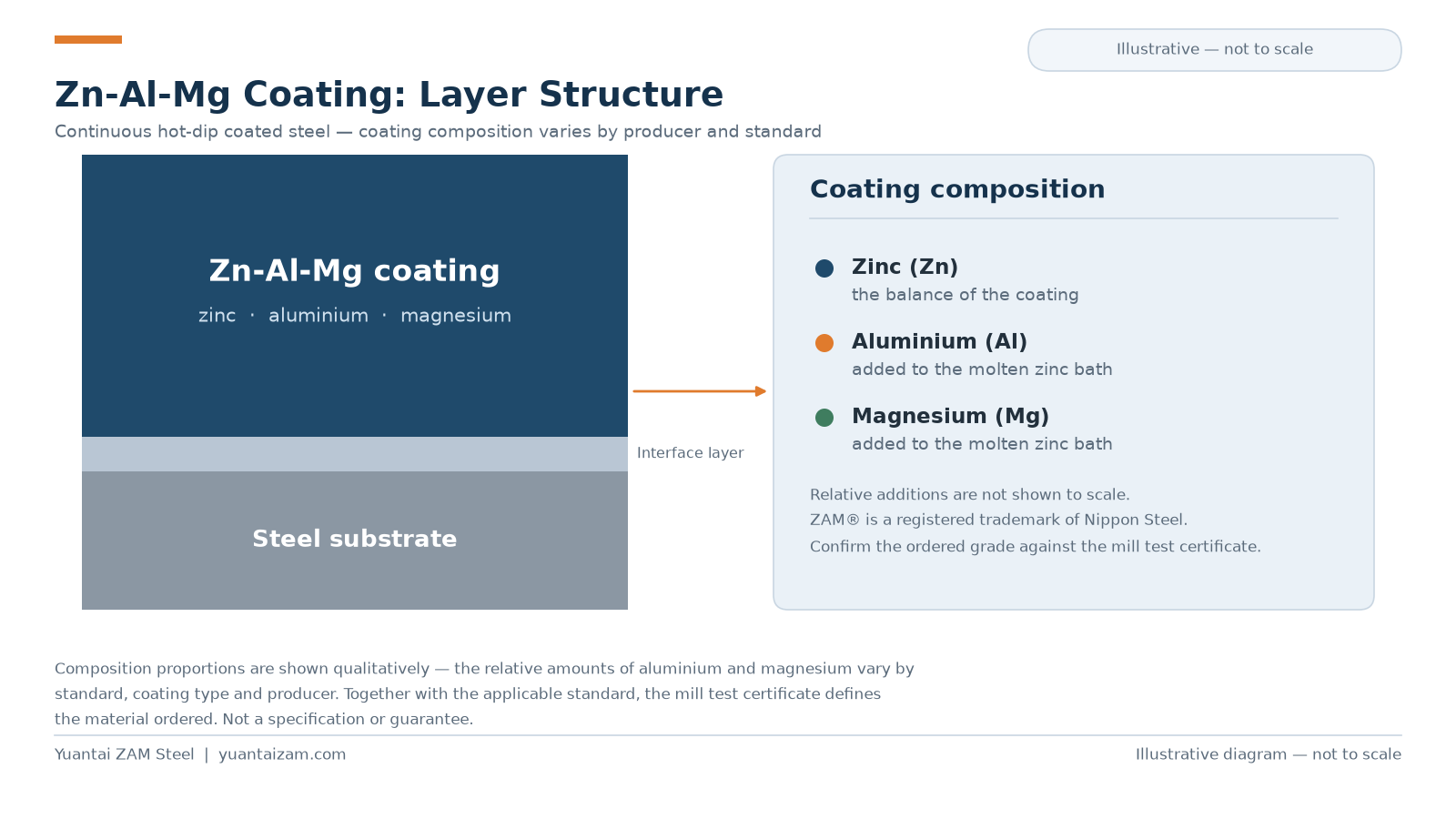

The coating chemistry varies by producer and applicable standard. Zn-Al-Mg coatings should therefore be understood as a family of zinc-based alloy coatings, not a single fixed material formula.
The well-known ZAM™ coating is commonly described as approximately 6% aluminum, 3% magnesium, and zinc as the balance. However, other Zn-Al-Mg coated steels may contain different amounts of aluminum and magnesium. A buyer should therefore not specify material only as “ZAM steel” unless genuine Nippon Steel ZAM™ branded material is required.
ASTM A1046/A1046M covers steel sheet in coils and cut lengths coated with zinc-aluminum-magnesium alloy by the hot-dip process for applications requiring corrosion resistance and paintability.
When purchasing Zn-Al-Mg coated steel, a complete specification should include the applicable standard, base steel grade, coating designation, coating mass, thickness, tolerance, surface treatment, intended fabrication process, exposure environment, and inspection requirements.
The corrosion protection of Zn-Al-Mg coated steel comes from the combined contribution of zinc, aluminum, and magnesium.
Zinc is the main protective element. It is more electrochemically active than steel, so it can corrode preferentially and provide sacrificial protection to nearby exposed steel. This is particularly important at small scratches, cut edges, and minor coating damage.
Aluminum improves the barrier performance of the coating. It helps create a more stable coating structure that reduces the penetration of moisture, oxygen, and corrosive contaminants toward the steel substrate.
Magnesium supports the formation of dense zinc-based corrosion products under many atmospheric conditions. These corrosion products may contain magnesium- and aluminum-bearing compounds, which can help slow corrosion around exposed edges and locally damaged areas.
The combined coating system can provide improved corrosion resistance compared with conventional zinc coatings of similar mass, especially in applications with repeated wet/dry cycles, humidity, chlorides, agricultural chemicals, or edge exposure.
However, corrosion resistance does not depend only on the coating alloy. Actual performance also depends on coating mass, steel substrate, surface treatment, fabrication method, edge geometry, drainage design, local climate, salt deposition, humidity, chemical exposure, and required service life.
For this reason, broad claims such as “ten times better corrosion resistance” or “3,000 hours salt-spray resistance” should be used with caution. Such figures can only be compared when coating mass, alloy chemistry, panel preparation, test method, passivation, scribe condition, and assessment criteria are the same.
One of the best-known advantages of Zn-Al-Mg coated steel is its enhanced protection at cut edges, punched holes, drilled holes, and small damaged areas.
This is often described as “self-healing.” However, a more accurate engineering term is enhanced cut-edge protection or self-protecting cut-edge behavior.
When steel is cut, sheared, punched, or drilled, the cross-section becomes exposed. In conventional galvanized steel, the cut edge may eventually develop red rust, especially under humid or chloride-containing conditions.
With Zn-Al-Mg coatings, moisture activates corrosion reactions in the coating next to the exposed edge. Zinc-based corrosion products containing magnesium- and aluminum-bearing compounds can form around the cut edge. This protective layer can slow the spread of red rust and reduce underfilm corrosion.
This behavior is especially useful for products that require extensive cutting and punching after the coating process, such as:
Solar mounting C channels and U channels
Roll-formed purlins
Strut channels
Cable trays
Brackets and connection plates
Agricultural support components
Slotted profiles
Light-gauge building members
It is important to understand the limitation: Zn-Al-Mg coatings do not recreate the original metallic coating after cutting. They also do not guarantee that every exposed edge can be left untreated.
Touch-up, repair coating, or additional protection may still be required for welds, wide coating-damaged areas, thick cut faces, direct chemical contact, severe coastal conditions, marine splash zones, standing water, soil burial, or projects with mandatory corrosion-protection requirements.
See our Zn-Al-Mg coated steel sheet options for roll-formed channels, purlins, brackets, and other edge-critical fabricated components.
Zn-Al-Mg coated steel, galvanized steel, and 55% aluminum-zinc alloy-coated steel all provide metallic corrosion protection, but they behave differently in fabrication and service.
Performance factor | Zn-Al-Mg Coated Steel / ZM Steel | Galvanized Steel / GI Steel | 55% Al-Zn Alloy-Coated Steel |
Typical coating system | Zinc-based alloy with Al and Mg | Primarily zinc | Usually about 55% Al, 43.4% Zn, and 1.6% Si |
Main protection method | Zinc sacrificial protection, barrier effect, and enhanced edge protection | Mainly zinc sacrificial protection | Aluminum barrier protection plus zinc sacrificial protection |
Cut-edge performance | Generally strong in atmospheric exposure | Moderate; repair may be needed in demanding exposure | Moderate; edge creep should be assessed |
Punched holes and slots | Often suitable for roll-formed, pre-coated parts | May require touch-up | Requires application-specific evaluation |
Formability | Generally good; verify bend radius and coating requirements | Generally good | Tight bends may need additional evaluation |
Welded areas | Weld and heat-affected zones need separate assessment | Weld repair is often required | Weld and heat-affected zones need assessment |
Typical uses | Solar profiles, purlins, C/U channels, agriculture, cable trays | General fabrication, light structures, ducting | Roofing, wall cladding, building envelopes |
Post-fabrication galvanizing | May be reduced for punched, roll-formed, and bolted parts | Often selected after fabrication for welded structures | Normally not used for post-fabrication galvanizing |
Salt-spray test results should not be treated as a direct prediction of outdoor service life. ASTM B117 and similar tests are accelerated laboratory tests. Results can vary greatly depending on coating mass, chemistry, passivation, sample preparation, cut-edge condition, test duration, and red-rust evaluation rules.
For real projects, material selection should be based on the local environment, coating mass, corrosion category, drainage conditions, fabrication process, target service life, and project specification—not only on salt-spray hours.

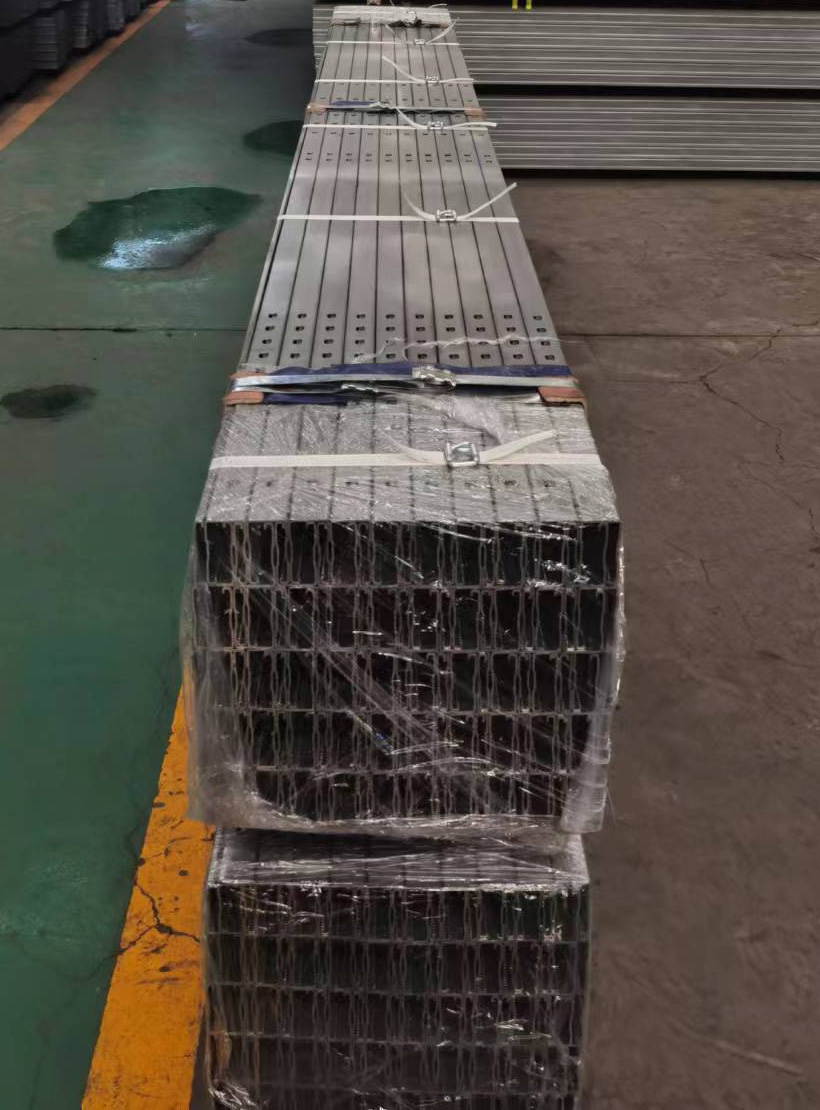

Zn-Al-Mg coated steel is widely used for solar mounting profiles because these components often require punching, roll forming, bolting, and outdoor corrosion resistance. Typical products include C channels, U channels, purlins, braces, brackets, cross rails, cable-tray supports, and connection members.
Using pre-coated Zn-Al-Mg coil can reduce production steps because profiles may be slit, punched, roll formed, and cut without requiring batch galvanizing after fabrication. This can improve dimensional consistency and shorten lead times.
However, Zn-Al-Mg steel is not automatically a replacement for post-fabrication hot-dip galvanizing in every solar project. The decision should consider site conditions, distance from the coast, chloride exposure, drainage, welding extent, structural design, required design life, warranty terms, and the project specification.
Agricultural environments can be highly corrosive because of ammonia, humidity, condensation, fertilizer, animal waste, and cleaning water. Zn-Al-Mg coated steel may be used for poultry-house components, livestock-building frames, greenhouse structures, feed-storage systems, agricultural fencing, ventilation components, and farm-equipment housings.
Material suitability should be assessed carefully where there is direct contact with manure, fertilizer, chemicals, or high concentrations of ammonia. Good ventilation, drainage, cleaning practice, and detail design remain important.
Other common applications include:
· Secondary structural profiles
· C and U purlins
· Cable trays
· Equipment frames and enclosures
· Electrical cabinets
· HVAC and ventilation components
· Warehouse and storage systems
· Modular building components
· Machinery guards
· Telecom supports
· Selected roadside and infrastructure components where permitted by the project specification
For public infrastructure projects, always follow the governing coating requirement, steel grade, testing plan, repair requirement, and local standard.
6. Standards and Ordering Requirements
EN 10346 is widely used for continuously hot-dip coated flat steel products. Zn-Al-Mg alloy coatings are commonly identified by the +ZM designation.
Examples include:
· DX51D+ZM for general forming and roll forming
· DX52D+ZM or DX53D+ZM for more demanding forming
· S250GD+ZM for structural applications
· S350GD+ZM for higher-strength structural profiles
· S550GD+ZM for high-strength cold-formed components, subject to forming requirements
The number after ZM generally represents the nominal total coating mass on both sides, expressed in g/m². Common designations include ZM70, ZM90, ZM120, ZM150, ZM200, and ZM275, depending on the applicable standard and mill availability.
EN 10346 covers several continuously hot-dip metallic coating systems, including zinc, zinc-iron, zinc-aluminum, zinc-magnesium, aluminum-zinc, and aluminum-silicon coatings.
For ASTM projects, ASTM A1046/A1046M should be specified with the applicable coating type, coating weight designation, steel grade, mechanical-property requirement, tolerance, surface treatment, and inspection documentation.
A complete purchase order should normally include:
· Applicable standard and steel grade
· Coating designation and coating mass
· Thickness, width, length, and tolerances
· Surface treatment, oiling, or anti-fingerprint requirement
· Intended fabrication process
· Welding, bending, punching, or roll-forming requirements
· Project location and corrosion environment
· Required design life
· MTC and inspection requirements
· Cut-edge, weld, and damage-repair requirements
· Export packaging and delivery requirements
Yes. Zn-Al-Mg coated steel can be welded using suitable MAG, TIG, resistance, or spot-welding procedures. However, the metallic coating is destroyed in the weld area and heat-affected zone.
The adjacent coating may provide limited protection, but it should not replace a specified weld-repair system. For outdoor structures, heavy welds, agricultural environments, industrial exposure, or coastal projects, use the approved repair method where required. This may include zinc-rich repair coating, thermal zinc spray, or a compatible paint system.
Use qualified welding procedures and provide appropriate ventilation or fume extraction in accordance with workplace safety requirements and SDS guidance.
Zn-Al-Mg coated steel is commonly used in atmospheric coastal environments, but “coastal” can mean very different exposure conditions. Salt deposition, rain washing, humidity, wind direction, drainage, orientation, and distance from the shoreline all affect corrosion performance.
Zn-Al-Mg coated steel should not automatically be considered suitable for direct seawater immersion, tidal zones, marine splash zones, permanent water immersion, or severe salt-retention conditions. Those applications require a project-specific corrosion assessment and may need another protection system.
Not always. Zn-Al-Mg coated steel can reduce red-rust development at cut edges and punched areas in many atmospheric applications. However, repair may still be necessary for welds, large scratches, severe chemical exposure, marine conditions, thick cut sections, and water-trapping details.
