Zn-Al-Mg Coatings: Ternary Phase & Self-Healing

In utility-scale solar and global infrastructure, "long-term protection" has moved past simple galvanizing toward high-level micro-metallurgy. For engineers facing C5-M high-salinity zones, traditional Hot-Dip Galvanizing often hits a wall before the 30-year design life is reached. At Yuantai Derun, Our engineering focus on Ternary Eutectic Structures introduces a Zn-Al-Mg matrix that recalibrates how S350GD+ZM structural steel resists environmental oxidation.

The Metallurgical Reality: Why "Ternary" Matters

Standard binary coatings (like Zn-Al) solidify with relatively large, loose zinc-rich phases. These are easy targets for localized corrosion. The Ternary Zn-Al-Mg system changes the game by using Mg as a catalyst to refine the entire grain structure.

The Matrix: Instead of coarse grains, you get primary Zinc dendrites locked within a fine, "labyrinth-like" mesh of Zn/Al/Zn₂Mg ternary eutectic phases.

The Labyrinth Effect: This dense interlocking structure acts as a physical barrier. The refined eutectic matrix creates a tortuous diffusion path, effectively obstructing the migration of aggressive chloride (Cl^-) and sulfate (SO₄^2-) ions toward the steel interface.

 Empirical Evidence: ASTM B117 Kinetic Analysis

Thickness is deceptive. In B2B, you don't buy steel for how it looks on Day 1—you buy it for the mass loss rate on Day 10,000. Microns are just a number; performance is about how the chemistry holds up. Here’s the breakdown of Ternary ZMA versus traditional HDG in a direct salt spray shootout.

Table 1: Comparative Corrosion Kinetics (Neutral Salt Spray Testing)

The Takeaway: Ternary ZMA delivers superior performance with just 1/3 the coating thickness of HDG. This allows for "lightweighting"—reducing the wall thickness of SHS/RHS sections to save on logistics without cutting the service life.

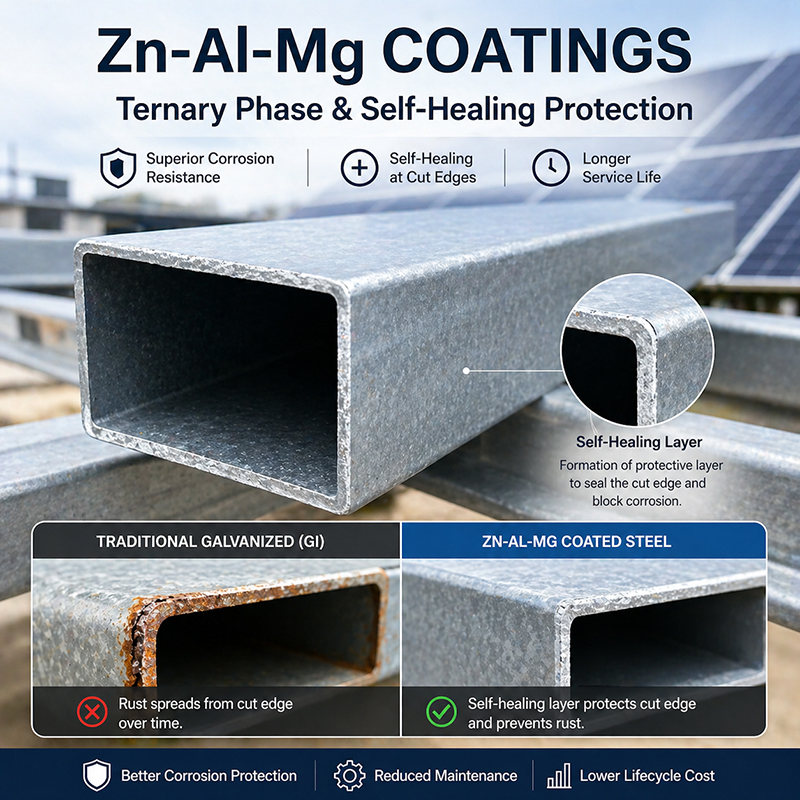

Cut-Edge Kinetics: The Simonkolleite "Scab"

The biggest headache in solar mounting is exposed steel at cut ends or bolt holes. ZMA coatings deal with this via Dynamic Chemical Compensation. When the steel is exposed, Magnesium ions (Mg²⁺) migrate across the cut surface, triggering the precipitation of a stable, alkaline zinc-magnesium-chloride known as Simonkolleite.

The chemical stabilization follows this path:

This insoluble layer acts like a "scab" over the raw steel, stifling the cathodic reaction. This is why our factory-direct pre-drilling services are so effective; the holes "heal" themselves in the field, removing the need for messy on-site cold-galvanizing sprays.

Traceability & The Digital Passport

We’re not just moving tons of steel; we’re delivering a tamper-proof digital trail. Every ZAM hollow section is baked into our Digital Passport—this isn’t some marketing fluff, it’s a proprietary QC milestone we built from the ground up.

When that MTC hits your desk on-site, just scan the QR Code. You get instant batch authenticity verification—zero lag. It pulls up everything: heat numbers, chemistry, and real mechanical specs (S350GD, S390GD, etc.). It’s the only way to be 100% sure the steel on your trucks actually hits EN 10346 or ASTM A1046 standards. No more guessing, just the raw data.
