ZAM Coating Vs Galvanized: Which Lasts Longer And Where?

Buyers comparing corrosion protection for steel tube and section usually start with hot-dip galvanised. ZAM (zinc-aluminium-magnesium coated steel) is the newer option on the same shelf, and the two are easy to confuse because both look silvery and both protect by sacrificing zinc. The difference shows up only after the steel is cut, formed and left in weather for a few years.

We supply both, so this is written from the coil and the test report rather than a brochure. Here is what actually separates them.

Side by side

Corrosion mechanism

Galvanised steel works by sacrificing its zinc layer. When the surface wets, zinc corrodes first and shields the steel underneath. ZAM does the same job but smarter. The aluminium adds a barrier effect, and the magnesium forms a tight, low-solubility corrosion product that does not wash away as fast. The film stays thin and stuck to the surface instead of powdering off, so the coating keeps protecting long after a plain zinc layer would have thinned out.

Cut-edge protection

This is the point that decides real service life. A roll-formed section or a punched bracket has cut edges, and that is exactly where corrosion starts. Galvanised steel leaves those edges as bare steel, so fabricators must brush on zinc-rich paint or the edge rusts within a season in wet air. ZAM handles it differently: the magnesium and aluminium next to the cut migrate and grow a protective layer right over the exposed steel. No field repair, no paint line on site. Our cut-edge self-healing article walks through the mechanism with a cross-section.

A critical note for fabricators: While raw ZAM coil maintains a tightly controlled coating layer, shaping the material into special-shaped profiles involves mechanical friction. Because of the inherent mechanical losses during this cold-forming process, the final zinc coating mass on finished sections is typically excluded from standard contract guarantees. However, ZAM's self-healing chemistry helps mitigate the impact of this mechanical wear better than traditional galvanized surfaces.

Cost and availability

ZAM normally carries a small premium over standard hot-dip galvanised, because the alloy bath and process window are tighter. The money comes back two ways. First, the part lasts longer before any maintenance. Second, you skip the cut-edge repainting that galvanised jobs require, which is a real labour cost on a large batch of brackets or purlins. For a one-off indoor frame, galvanised is still the cheaper call. For anything facing weather year after year, ZAM pulls ahead.

When to pick which

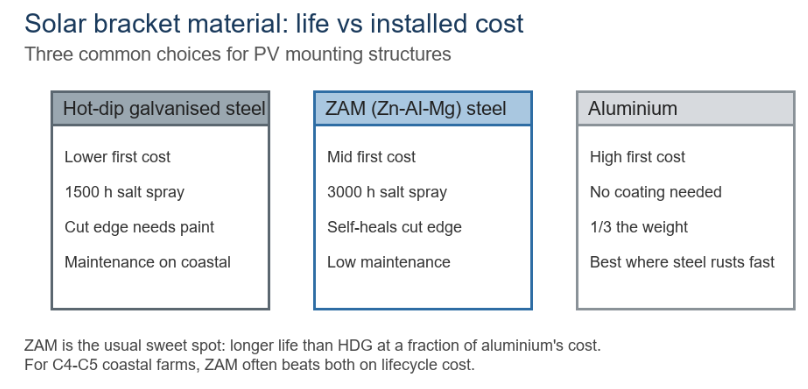

Choose galvanised for dry indoor duty, short-life items and jobs where the fabricator will paint the cut edges anyway. Choose ZAM for coastal roofs, chemical plants, solar mounting and agriculture structures where the cut edge stays exposed and repainting is impractical. If the project is a PV array, our ZAM photovoltaic bracket guide covers the corrosion classes and lifecycle cost in detail. For the coating range itself, see our ZAM product page.

FAQ

What is the difference between ZAM and galvanized coating?

Galvanised steel carries a pure zinc layer from hot-dip immersion. ZAM is a zinc base with aluminium (about 6 percent) and magnesium (about 3 percent) added to the bath. The magnesium is the key: it builds a denser, more stable protective film and lets the coating heal itself at cut edges.

How many salt-spray hours does ZAM reach versus galvanized?

In neutral salt spray to first red rust, ZAM typically reaches about 3000 hours, while hot-dip galvanised sits near 1500 hours at a comparable coating thickness. The gap widens further at the cut edge, where galvanised steel exposes bare substrate.

Does ZAM protect the cut edge?

Yes. When ZAM coil is slit or punched, magnesium and aluminium from the surrounding coating migrate and form a protective layer over the exposed steel. Galvanised steel leaves the cut edge as bare steel that needs field touch-up paint to avoid rust.

Is ZAM more expensive than galvanized?

Usually a small premium over standard hot-dip galvanised, because of the alloy bath and tighter process control. The saving comes back through longer service life, less maintenance and no cut-edge repainting, especially in coastal and chemical environments.

Can ZAM replace galvanized in every application?

For most atmospheric and mild-chemical exposures, yes, and it lasts longer. Very high-temperature or strongly acidic duty should be checked against the coating data sheet, because the aluminium and magnesium change the behaviour above the zinc melting range.

Further reading

Engineers compare coating choices in threads such as r/AskEngineers. For the cut-edge mechanism, read our ZAM self-healing explainer, and for solar use our PV bracket guide.

Written by the Yuantai Derun ZAM Technical Team. Salt-spray figures are typical ASTM B117 values at comparable coating thickness; confirm exact class and hours against the mill certificate and the relevant standard.
