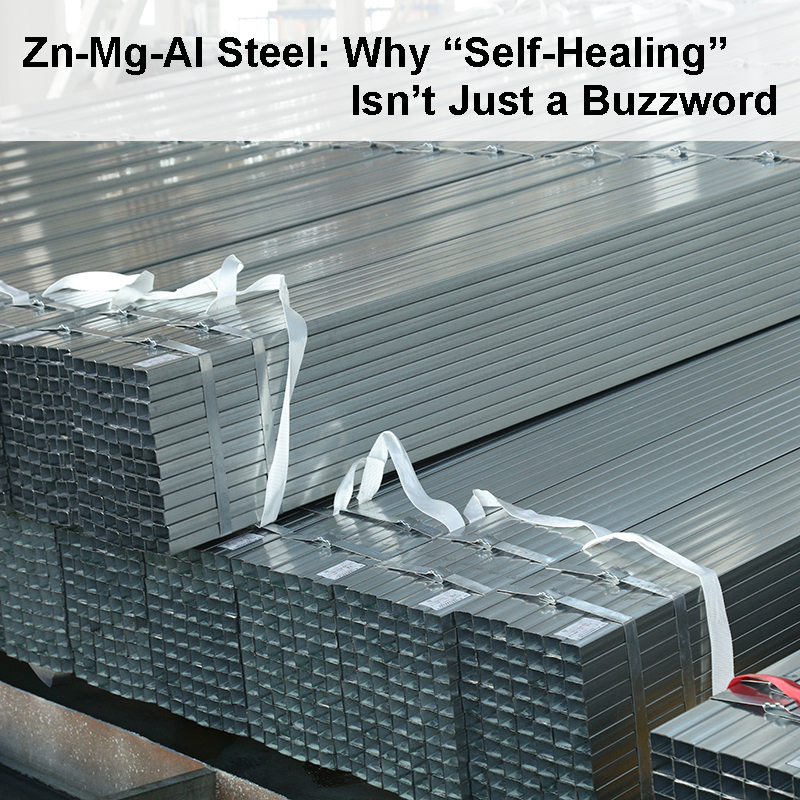

Zn-Mg-Al Steel: Why “Self-Healing” Isn’t Just A Buzzword

Ask any site manager what causes the most trouble with , and you’ll hear the same answer: the cut edge.

You can have a perfectly coated pipe, but the moment it’s cut, drilled, or modified on site, that exposed edge becomes the weak point. For years, the workaround has been manual touch-up—zinc-rich paint, applied in a hurry, often inconsistently. It costs time, and more importantly, it rarely holds up in aggressive environments.

This is where Zinc-Magnesium-Aluminum (Zn-Mg-Al) coatings start to show their value. It’s not just an incremental upgrade to galvanizing—it behaves differently once the material is actually in service.

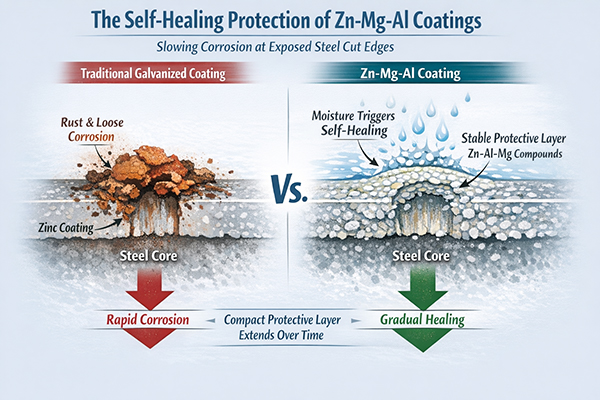

What “Self-Healing” Really Means

The term “self-healing” gets thrown around a lot, and understandably, it sounds like marketing. In reality, it comes down to how the coating reacts after the steel is exposed.

Traditional galvanized coatings rely mainly on zinc. When damaged, zinc sacrifices itself to protect the steel, but the corrosion products it forms can be relatively loose and less stable at cut edges.

With Zn-Mg-Al coatings, the addition of magnesium and aluminum changes this behavior.

When a cut edge is exposed to moisture, a localized reaction occurs. Instead of forming porous corrosion products, the coating tends to generate a more compact and stable layer of zinc-based compounds. These products grad ually extend over the exposed edge and help slow down further corrosion.

It’s not an instant “seal,” and it’s not magic—but it does mean the exposed steel is far better protected over time compared to conventional coatings.

Where This Actually Makes a Difference

This isn’t just a lab discussion. The benefit shows up in places where cut edges are unavoidable and environments are harsh.

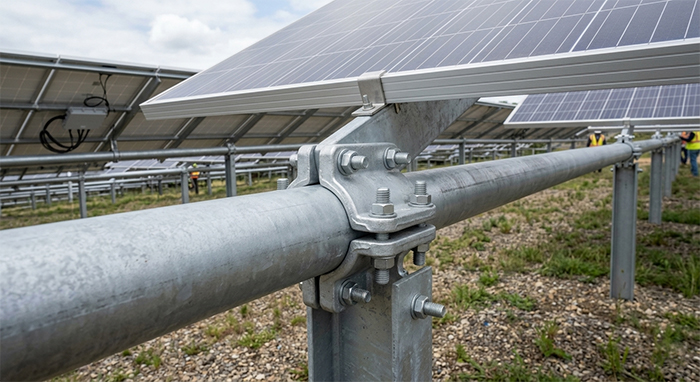

Solar Mounting Systems – The “Swiss Cheese” Reality

Solar structures involve thousands of drilled holes. Manually coating every edge is time-consuming and inconsistent. Zn-Mg-Al coatings reduce the reliance on touch-up work and provide more uniform long-term protection, especially in coastal or desert installations.

Livestock Facilities – High-Ammonia Environments

Poultry and swine buildings are highly corrosive due to ammonia exposure. Conventional galvanized steel tends to degrade quickly here. Zn-Mg-Al coatings offer improved resistance in alkaline and ammonia-rich conditions, helping extend the service life of structural tubing.

Infrastructure & Power Transmission

Higher-strength steels such as S350GD and S450GD are increasingly used with Zn-Mg-Al coatings. This allows for lighter designs without putting cut-edge durability at risk, particularly in areas exposed to rain, humidity, or salt-laden air.

Utility and Cable Systems

In enclosed or underground environments where maintenance is difficult, long-term corrosion resistance becomes critical. Zn-Mg-Al coated components help reduce the frequency of inspection and replacement.

It’s Not Just the Coating—It’s the Process

One thing the market is starting to see is inconsistency. Not all “ZAM” or Zn-Mg-Al products perform the same.

The effectiveness of the coating depends heavily on:

Controlled Mg and Al composition

Proper solidification and coating structure

Stable production parameters

If these aren’t handled correctly, the performance advantage can be significantly reduced.

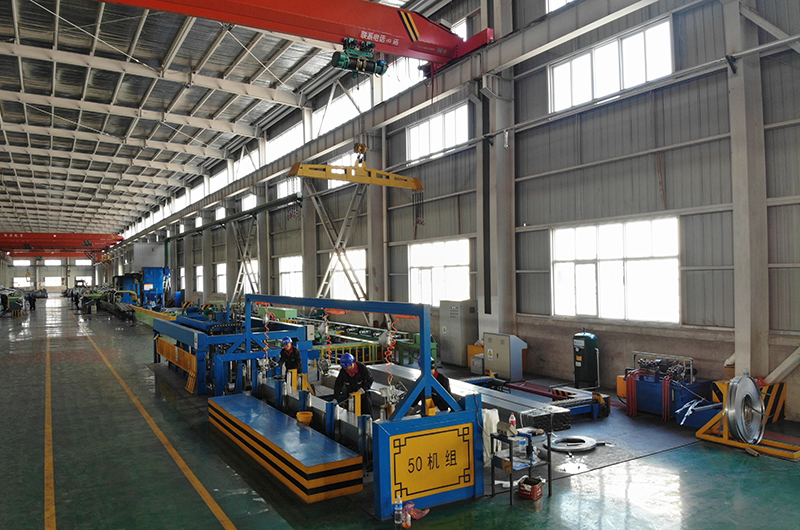

That’s why traceability matters. In our production, each batch is linked to a specific heat number and backed by extended salt spray testing. We also use controlled cutting methods to minimize unnecessary damage at the edge.

The Bottom Line

Zn-Mg-Al isn’t about making steel indestructible. It’s about improving how it behaves in the real world—especially at its weakest points.

For projects where cutting, drilling, and long-term exposure are unavoidable, that difference adds up quickly: less rework on site, more consistent performance, and a longer service life you can actually rely on.
